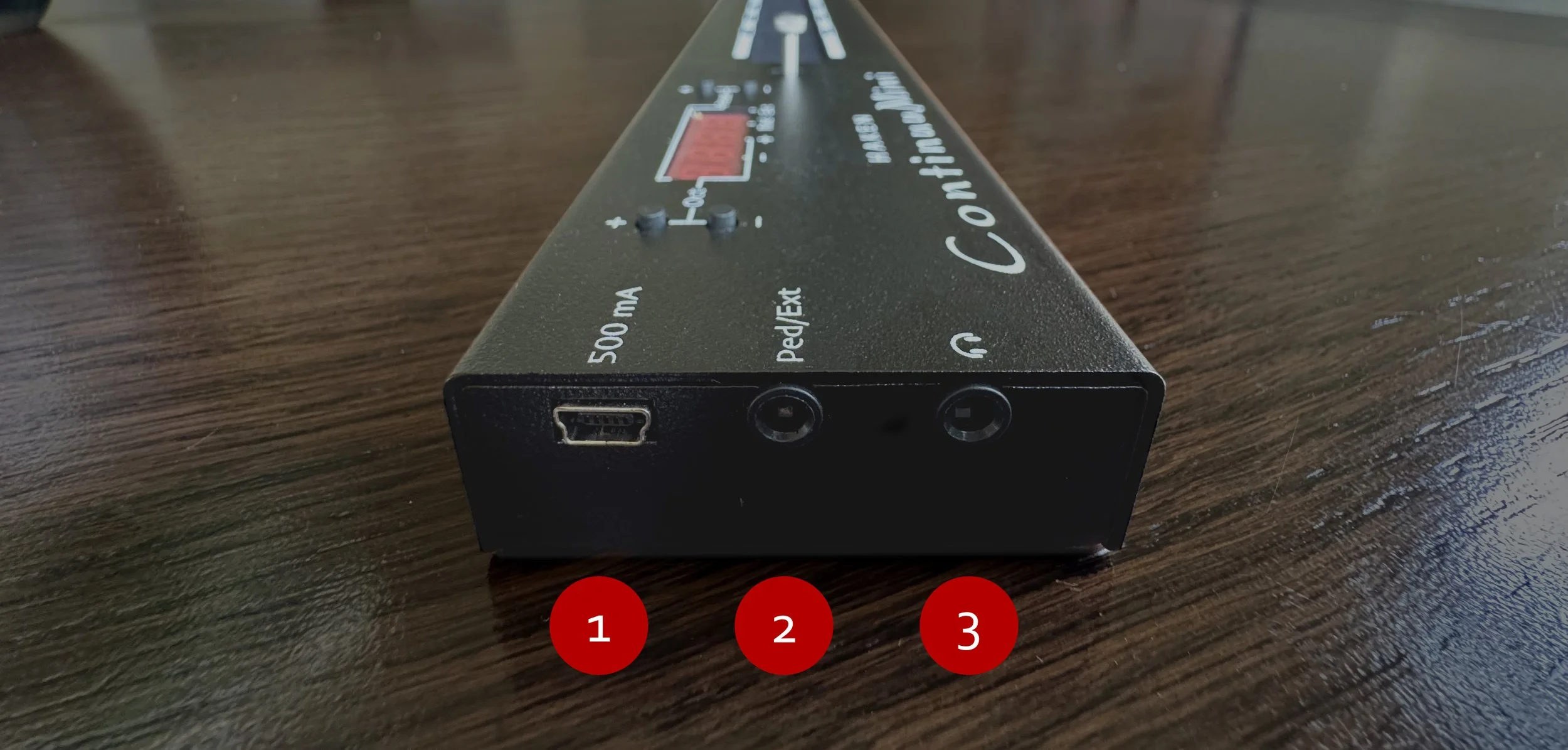

Connectivity

1. USB
   Power and Midi over USB

2. 3.5 mm TRS (Ped/Ext)
   Pedal input, also used for i2c connectivity to the Control Voltage Convertor

3. 3.5 mm TRS (Audio)
   Stereo audio output, line or headphone level

Specifications

Polyphonic gliding sounds dynamically playable by pressure and in horizontal position

The fingerboard processes data simultaneously on the X Y and Z axes for one to a maximum of 2 fingers

Built-in sound generation (Eagan Matrix) with 8 voices

Range: 2 octaves (2750 cents), expandable with octave switching

Supports MIDI, MPE and MPE+

Output of up to 8 analogue control voltages (CV) possible via optional Control Voltage Converter

3.5 mm stereo headphone output with 24Bit converter

3.5 mm pedal connection

Mini-USB port for data transfer and power supply

Dimensions (W x D x H): 530 x 60 x 20 mm

Weight: 250 g
