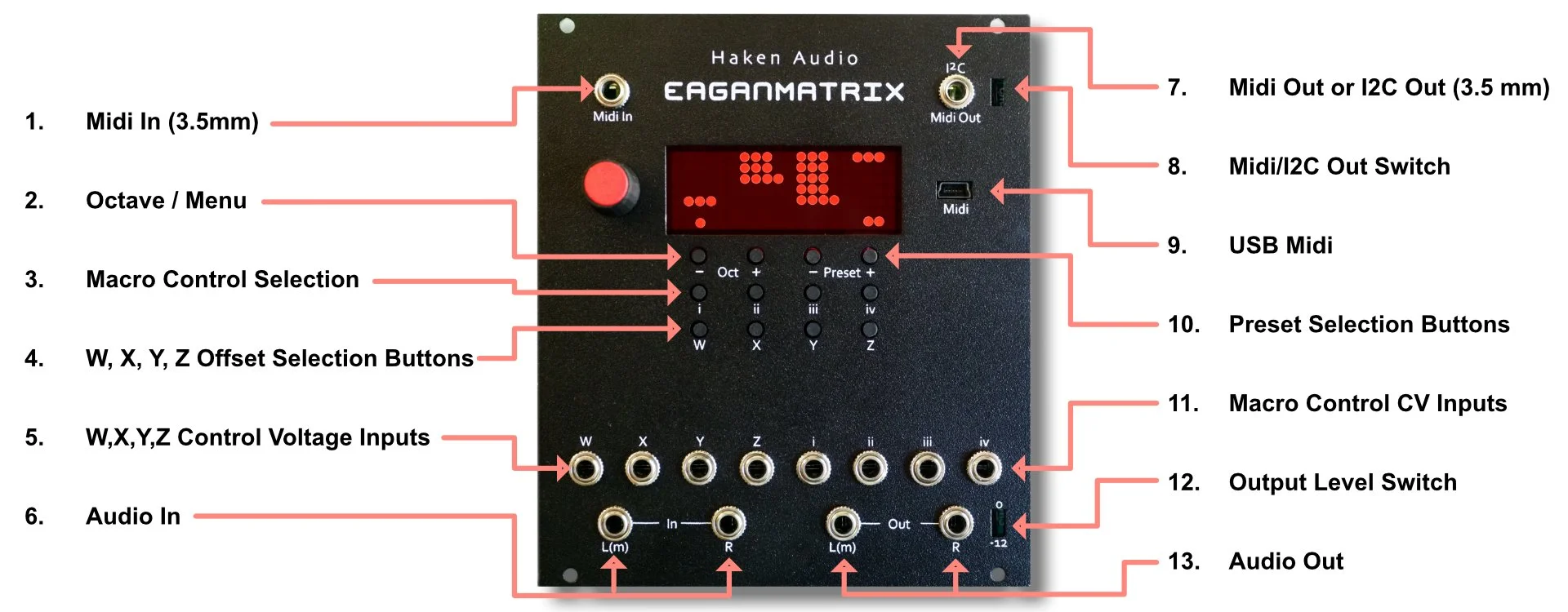

Connectivity

  1. Midi In (3.5mm): Type A, B or TS, for normal Midi operation and firmware updates. Midi performance data can be used simultaneously with W,X,Y,Z control voltage inputs.

  2. Octave / Menu Selection: Press - Oct- with Oct+ to Enter/Exit  the Menu.

  3. Macro Control Selection: 0 to 5V or -5 to +5V with offsets. Macros i, ii, iii. Iv, v, vi all apply globally. Macros v & vi are accessible from the menu.

  4. W, X, Y, Z Offset Selection: W: Gate (can set constant Gate on), X: Coarse and fine Tuning, Y: Maps to Y control in presets (usually timbre), Z: Loudness (usually maps to pressure).

  5. W,X,Y,Z Control Voltage Inputs: W: Gate > 1V (Gate current note on/off) X: 1V/Oct, -10V to +10V, normally less Y: 0 to 5V, -5V to +5V with offsets Z: 0 to 5V, -5V to +5V with offsetsProvide W Gate On/Off and Z (0-5V) CV inputs to trigger notes for most presets.
    Can be used simultaneously with performance data from Midi input(s).

  6. Audio In: Unbalanced Input. Left/Right stereo or mono. Input is treated differently depending on the preset.

  7. Midi Out or I2C Out (3.5 mm): Midi Out or I2C connection to CVC or µCVC.

  8. Midi/I2C Out Switch: Up: I2C Out to CVC or uCVC Down: Midi Out (3.5 mm) Type B.

  9. USB Midi: USB Mini-B for Midi via USB and firmware updates.

  10. Preset Selection Buttons: Inc/Dec (Modified with Rotary).

  11. Macro Control CV Inputs: 0-5V, -5V to 5V with offsets provided by Macro Control Selection.

  12. Output Level Switch: 0 dB Eurorack, -12 dB Line Level, Digitally adjustable with a 48 db range.

  13. Audio Out: Stereo output; use of Left output only is an audio sum of the stereo signal path. Default audio levels are set for a wide dynamic range.



Specifications

  • Polyphony:
    Nominal 1, Maximum 8

  • 4 Per-note CV Inputs: W, X, Y, Z
    Gate (W) — Triggers at 1V, with max range -10V to +10V
    Pitch (X) — 1V/Oct, custom offset for Middle C; useful input voltages from -10V to +10V
    Timbre (Y) — Function depends on EaganMatrix preset; voltage range: 0V to 5V.
    Loudness (Z) — normally 0V to 5V.

  • 4 Global CV Inputs: i, ii, iii, iv
    Functionality depends on EaganMatrix preset; these CV affect all voices (notes from WXYZ and Midi In); each global CV is normally 0V to 5V.

  • 2 Analog Audio Inputs
    Left and Right, or Mono

  • 2 Analog Audio Outputs
    Left and Right or Mono (12dB switch for Eurorack/Line Levels)

  • Midi In: Type A, Type B, Type TS, and DIN Midi (via included adapter)
    Allows MPE and MPE+ connection to other Midi devices without need of computer or USB

  • Midi Out: Type B and DIN Midi (via included adapter)
    Allows MPE and MPE+ connection to other Midi devices without need of computer or USB

  • USB Midi: Mini-B
    Allows connection to Haken Editor on Mac or PC
    Allows MPE and MPE+ connection to soft synths on Mac or PC

  • i2c Port for Communication to the Control Voltage Converter

    Allows connection to Haken Audio CVC or Evaton Technologies µCVC

  • 12 Switches, 1 Rotary, and LED Matrix
    A menu system allows stand-alone operation without need of computer, and provides monitoring for notes being played and CV input levels

  • Included with purchase
    Two 3.5mm adapters to 5-pin DIN Midi In / Out
    USB A to USB Mini-B Cable for connection to Mac or PC
    Eurorack power cable

  • Power
    +12V 125mA; +5V 100mA; -12V 25mA
    +12V, +5V, ground, and -12V from your Eurorack enclosure

  • Dimensions:
    22HP
    3cm depth
